HLS AUDIA ARRAY 28A (AKTIVE)

• Live sound
• Touring
• Configurazioni stack o fly

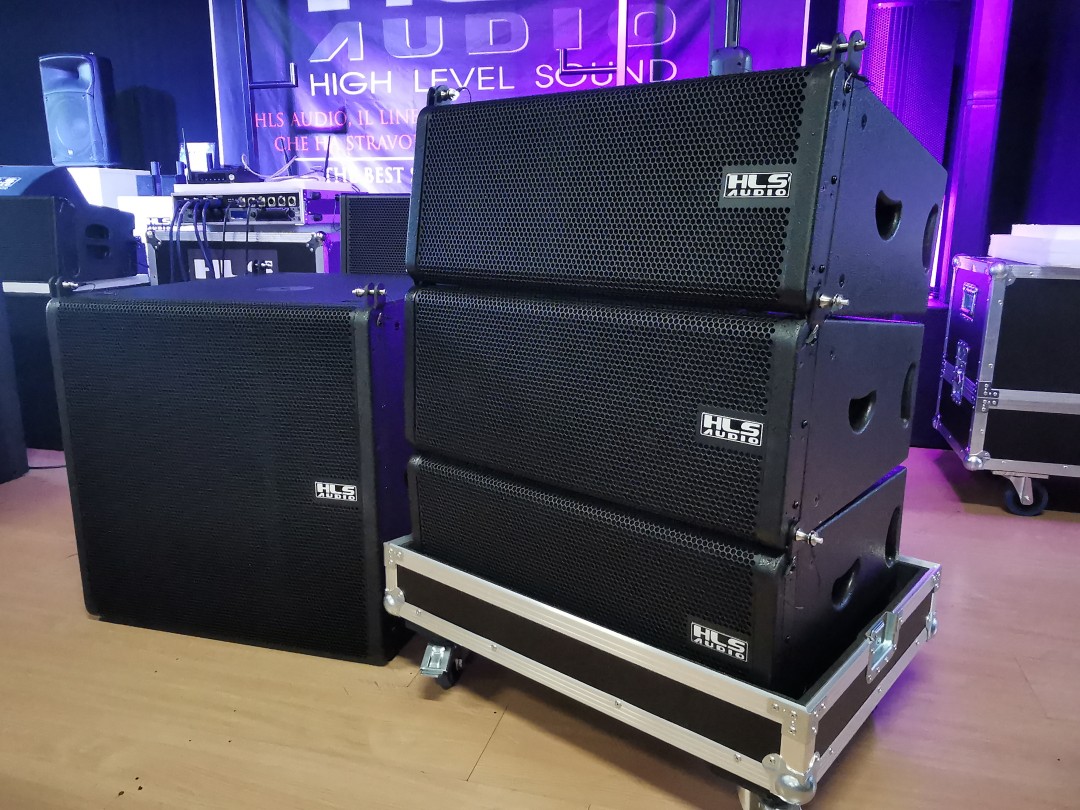

The HLS AUDIA ARRAY 28A audio system is a versatile 900-watt bi-amp satellite line array speaker, suitable for small to large audiences. Up to 4 units can be stacked and up to 12 units can be flown. The variety of options allows for the correct sound dispersion and DSP settings to be adjusted based on the application and location.

The HLS AUDIA ARRAY 28A features two 8′ Celestion neodymium midrange woofers and two 1′ Celestion neodymium compression drivers, capable of producing up to an impressive 131 dB SPL at 1 meter. This active speaker works perfectly with the HLS AUDIA S18A subwoofer. A specially designed waveguide, phase plug, and optimized amplification with configurable DSP ensure the top-of-the-line AUDIA ARRAY 28A is effective in any circumstance and configuration.

Specification AUDIA 28A (AKTIVE)

Outputs Low Driver Power 750 W – High Driver Power 150 W

Power Amplifier RMS Output 900 W -Power Amplifier Peak Output 3600 W

Main Output Connector 3-pin XLR

Mono Input  1 Connector 3-pin XLR

Audio Specifications

THD Level  90 dB

AD/DA Convertor Sample Rate 48 kHz

Amp Technology Class AB & D

Damping Factor 200 :1

Speaker System 2-way Line-Array

Speaker Sensitivity (1 W/1 m) 99 dB

Maximum SPL at 1 m 132dB

DSP Processor Bitrate 32-bit

Frequency Response (-3 dB) Minimum 80 Hz

Frequency Response (-3 dB) Maximum 19000 Hz

Crossover Frequency (Low) 90 Hz

Crossover Frequency (High) 1600 Hz

Woofer Diameter 8 ‘ CELESTION

Woofer Voice Coil Diameter 2 ‘

Woofer Magnet Type Neodymium

Compression Driver Diameter 1 ‘CELESTION

Compression Driver Voice Coil 1.75 ‘

Compression Driver Magnet Type Neodymium

Dispersion Angle (Horizontal) 110 °

Dispersion Angle (Vertical) 12 °

Internal Storage User Presets

User Presets Capacity 10

Control and Programming Control Mode PC Software, Stand Alone

Power Supply 100-240 V AC 50/60 Hz

Power Consumption 350 W – Fuse 5 A

Power Connector In powerCON Blue – Power Connector Out powerCON Grey

Mechanical Specifications

Amplifier Cooling Axial fan

Height (mm) 300 mm  – Width (mm) 635 mm – Depth (mm) 468 mm

Material Plywood – Material Thickness 18 mm (0.709″)

Colour Black Finish Painted

Weight 21 kg

Electronic Protection Convection-fan, Digital limiter, Overload, Thermal LED Indicators

Clip, Data connect, Power, Protect, Signal

Speaker Grille Material Steel

Speaker Handle Positions Left side, Right side

Rigging Mounting Options 3-point suspension

Rigging Options Flying, Stacking

The HLS AUDIA SUB S18A features an 18′ Celestion ferrite subwoofer containing a 4′ voice coil with a staggering output of up to 140 dB SPL at 1 meter. DSP settings are configurable to ensure the S18A performs in any circumstance and configuration. Several DSP presets are also available, including ‘Cardioid’ mode.

Setting up a complete HLS AUDIA line array can be done by a single person thanks to its 4-point rigging system. Not only is setup quick and labor-saving, but it’s also a highly modular system that allows for different configurations to suit any venue. You can use the optional M20 pole mount for a satellite setup. Or you can integrate the optional stack frame or flybar and use the rigging points for a stack or line array configuration that best suits your venue.

Specifications SUB AUDIA ARRAY S18A (AKTIVE)

Outputs Low Driver Power 1800 W

Power Amplifier RMS Output 2000 W –  Peak Output 8000 W

Main Output 1 Connector 3-pin XLR – Mono Input 1 Connector 3-pin XLR

Audio Specifications

THD Level  90 dB

AD/DA Convertor Sample Rate 48 kHz

Amp Technology Class D

Damping Factor 200 :1

Speaker Sensitivity (1 W/1 m) 101 dB

Speaker Impedance 8 Ω

Maximum SPL at 1 m 141 dB

DSP Processor Bitrate 32-bit

Frequency Response (-3 dB) Minimum 30 Hz

Frequency Response (-3 dB) Maximum 120 Hz

Crossover Frequency (Low) 32 Hz – Crossover Frequency (High) 90 Hz

Woofer Diameter 18 ‘ CELESTION

Woofer Voice Coil Diameter 4 ‘

Woofer Magnet Type Ferrite

Subwoofer Dispersion Angle (Horizontal) 360 °

Subwoofer Dispersion Angle (Vertical) 180 °

Internal Storage User Presets

Control and Programming PC Software

Power Supply 100-240 V AC 50/60 Hz

Power Consumption 1150 W – Fuse 6.3 A

Power Connector In powerCON Blue

Power Connector Out powerCON Grey

Mechanical Specifications

Amplifier Cooling Axial fan

Height (mm) 665 mm  – Width (mm) 635 mm – Depth (mm) 700 mm

Material Plywood – Material Thickness 18 mm (0.709″)

Colour Black Finish Painted

Weight 57 kg

Product Properties

Pole Mount M20

Electronic Protection Convection-fan, Digital limiter, Overload, Thermal

LED Indicators Clip, Data connect, Power, Protect, Signal

Speaker Grille Material Steel

Speaker Handle Positions Left side, Right side

Castors

Optional

Rigging Options , Flying, Stacking

• DSP configurabile
• Stack fino a 4 moduli e fly fino a 12
• Componenti Celestion
