HLS AUDIO ‘ARENA’

• Live sound
• Touring
• Teatri e sale polifunzionali

NOVITA’ 2026

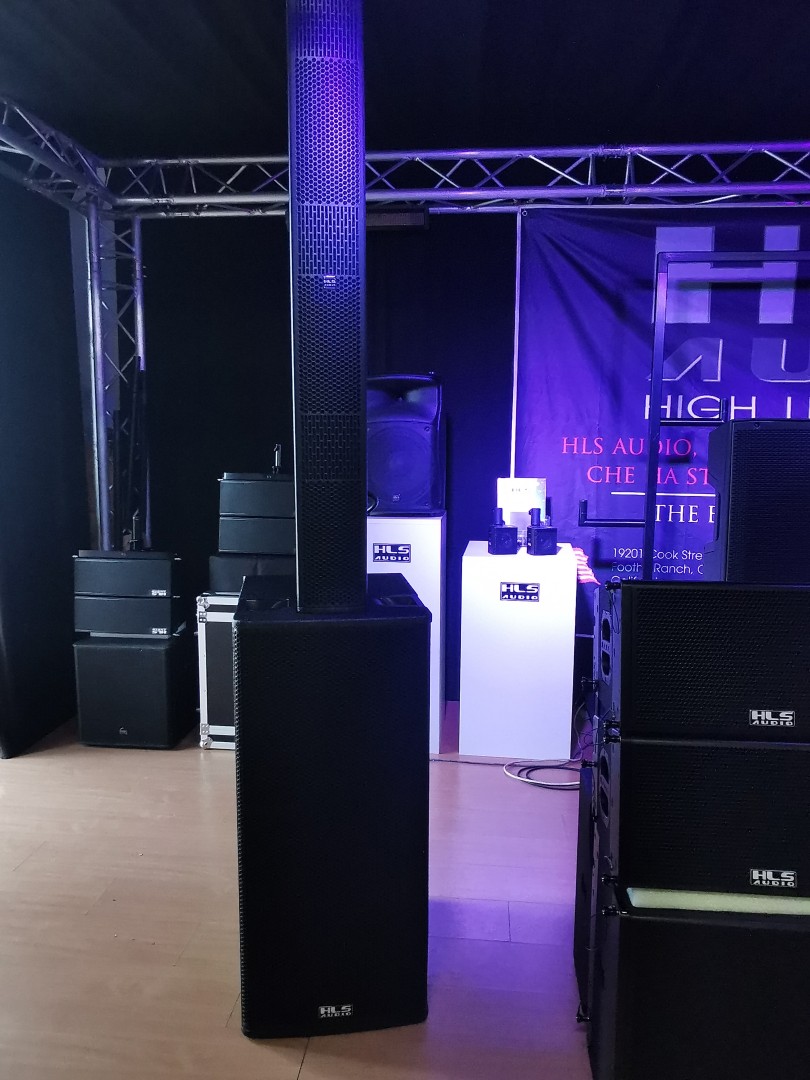

ARENA is a high – end , high – quality mid – and high – frequency column array speaker , wh ich equipped six pcs 5′ mid – frequency driver and three pcs 1.75′ neodymium high – frequency tweeter . The dumbbell structure design , combined with the curvature hig h – frequency diffusion horn , solves the vertical diffusion angle problem of columnar array speakers . Clear and thick mid – frequency performance , delicate high – frequen cy response . Suitable for medium live sound system , touring , function hall , theater and other places

.

ARENA TOP

speaker Passive 5inch two way column speaker

①Rated power 950W

②Program power:1900W

③Components: 6×5′(celestion driver)+3*1.75′(neo ,Celestion from UK)

④Sensitivity(1w/s):102dB

⑤Rated Maximum SPL(1m):132dB Peak,@1m

⑥Frenquncy range:70Hz – 19kHz

⑦Dispersion:40°/100°

⑧Impendence:6Ω

⑨weight:19KG ⑩Dimensions(W*D*H):155*185*1306mm

ARENA SUB is a planar waveguide speaker active system specially designed to supplement th e low frequency of ARENA TOP . It consists of two 15- inch 75- core voice coil long – excursion s peakers . ARENA SUB is designed with a three – point connection device on the top , which ca n be quickly combined with TOP ARENA

SUB is an active speaker system with a built – in four channel digital power amplifier module with a total power of 4600W and a built – in DSP , which can drive one TOP at the same time . Suitable for small live sound system , touring , function hall , theater and entertainment venues .

ARENA SUB

①Components:2*15’Low

②Frequency range:40Hz～200Hz (±3dB)

③Rated /Program power(RMS/ peak):2500W/5000W

④ Sencitivity(1 W/m):109dB

⑤Rated Maximum SP:142dB ( peak@1m)

⑥Input Impedance:20 KΩ

⑦Input Sensitivity：0.775V

⑧Output Power：1800W+1800W+900W+500W

⑨Distortion：<0.05%

⑩Pow Connector：Power Con

⑪Operating Voltage：120V to 220V 50/60Hz

⑫Colour：Black/White

⑬Weight：42Kg

⑭Dimensions（W×D×H）：396× 500 × 950mm

• Copertura controllata
• Sistema modulare
• DSP e amplificazione integrati nel sub
