HLS KOALA BIG

• Live
• Club
• Eventi outdoor

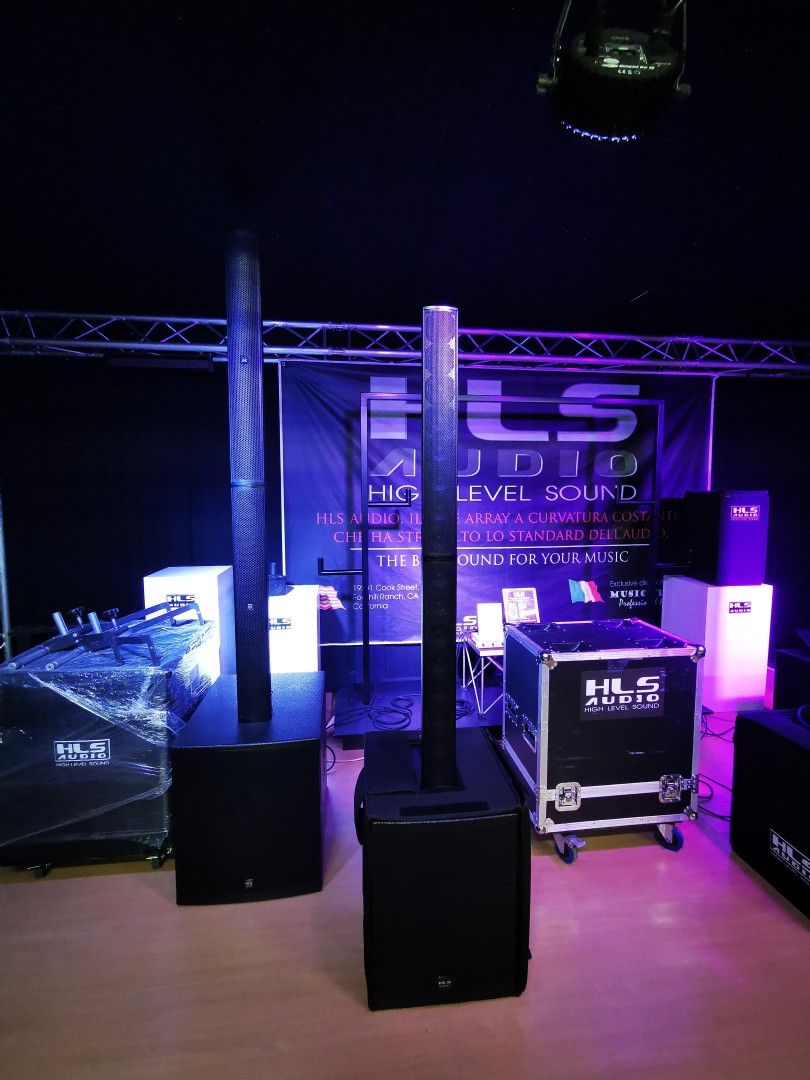

The KOALA BIG is a line array column system comprised of Eight 4′ neodymium magnet (LA VOCE) transducers housed in an elegant and sturdy stainless steel chassis. The eight closely spaced cone drivers provide true line array characteristics-phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.

KOALA BIG SUB 18 is a 18′ subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency, speed and impact. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor shows where extreme level of bass is required. The T-118P with power amp module and incorporated DSP .

TECHNICAL PARAMETERS HLS AUDIO KOALA BIG

Model koala Column 408

Type Line array Column system

Frequency Response 100Hz-18KHz±3dB

Power handling 480W(RMS)1920W(PEAK)

Sensitivity 100dB(1W@1M)

Max SPL 124dB(PEAK/1M/1W)

Speaker driver 8×4′(104mm)25mm(1in)coil (LA VOCE)

Nominal impedance 8 ohm

Coverage 100°

Connectors 2×NL4MP speakon

PHYSICAL PARAMETERS

Enclosure Material Aluminum

Dimensions 110x90x155(W×H×D)

Net weight 9.0kg

TECHNICAL PARAMETERS KOALA SUB 18P

Type Line array subwoofer system

Frequency Response 38Hz-500Hz±3dB

Power capacity 1500W(RMS)6000W(PEAK)

Sensitivity 104dB(1M/1W)

Max SPL 138dB(PEAK/1M/1W)

Drivers 1×18′(460mm)woofer with 100mm (4in) coil

Nominal impedance 8 ohm

Connectors 2×NL4MP speakon

PHYSICAL PARAMETERS

Finish Textured paint

Enclosure Material Plywood

Dimensions 510×590×700mm(W×H×D)

Net weight 39.5kg (T-18P)

POWER AMPLIFIER PARAMETERS HLS T-5

Amplifier type Switching mode amplifier,class D circuit

Power Output(RMS) 2X1500W/8ohm

Other functions DSP Built-in

Weight 3kg

Configuration The amp module is built inside KOALA SUB ,Which is designed to power 2xCOLUMN+SUB18P.

• Componenti LaVoce
• Cabinet column in alluminio
• Amplificazione classe D con DSP
